AutoScan-DS-MIX high-end dental scannerDS MIX Shining

The dental scanner

more accurate than ever!

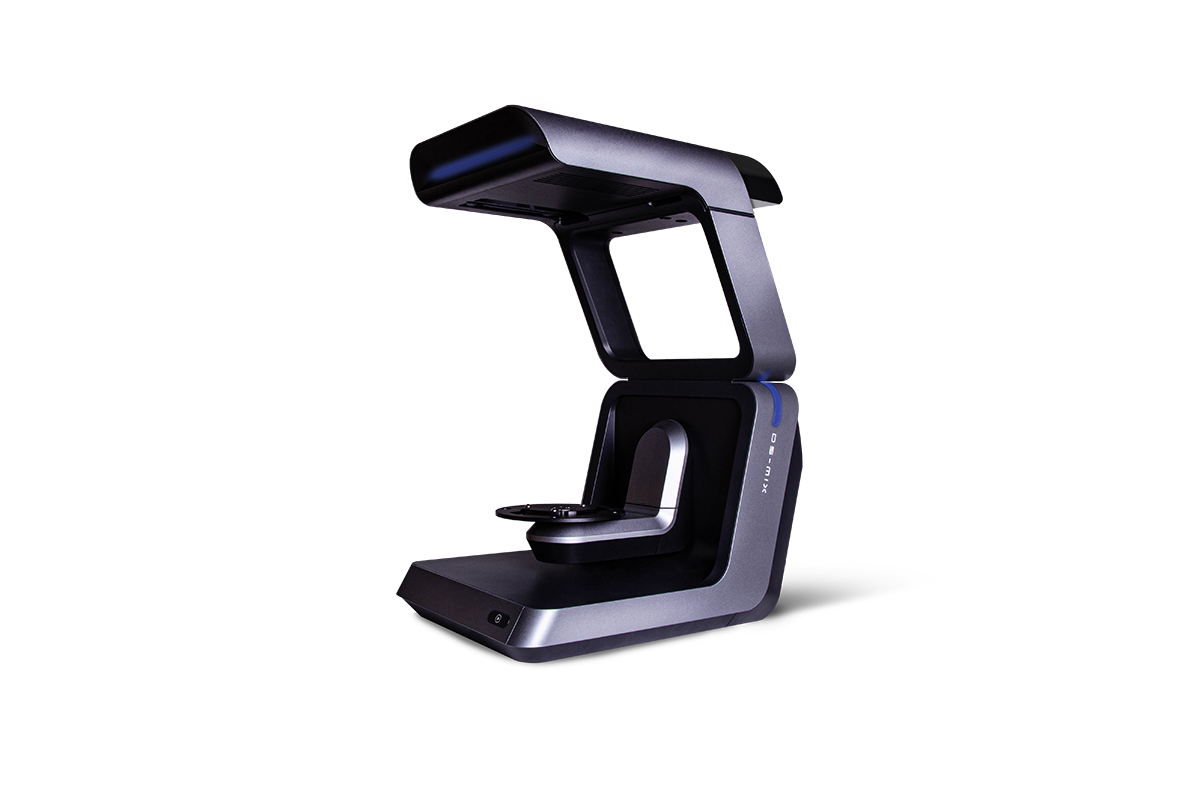

AutoScan-DS-MIX is a high-end dental 3D scanner developed by SHINING 3D. With open design and modular structure, AutoScan-DS-MIX offers precise detail, high precision and high efficiency to meet user needs for a wide range of dental applications including crowns and bridges, implants, bars, etc.

Ultra fine details

Thanks to the dual 5.0 MP high resolution cameras,
AutoScan-DS-MIX is capable of perfectly capturing die ends and scanbody characteristics.

High precision

Scanning accuracy ≤7nm ensures reliable scanning results.

High efficiency

AutoScan-DS-MIX supports High Efficiency Scan Mode: 13 seconds for full arch scan.
With all-in-one scanning, scanning efficiency can be improved by approximately 30%.

TECNICAL DATA

Camera Resolution	2x5.0 MP
Precision	7 µm
Scan field	100 mm x 100 mm x 75 mm
Temperature	10 °C - 30 °C
Dimensions	260 mm * 270 mm * 420 mm
Export format	STL, OBJ, PLY
Power supply	AC 24 V
Scan time	• Occlusion: 6 sec. • Upper / lower arch: 18 sec. • Abutments 1-4: 18 sec. • Footprints: 32 sec.

Benefits

FREEDOM

AutoScan has a removable module structure.

ARTICULATOR SCAN

It supports scanning of most of the articulators available on the market such as Ar.go Artex, KaVo, SAM, etc.

IMPRINT SCAN

Better efficiency in scanning partial impressions with the occlusal control jig.

TEXTURE SCAN

The details on the models can be read clearly, providing clear and precise indications for both aesthetic work and skeletal prosthesis designs.

CONTINUOUS SCANNING

Using a connection to the local area network (LAN), scanning and data processing can be performed on separate computers. This new feature will considerably take work efficiency to another level.

DATA FORMAT

Export STL data, high compatibility.
